Riding Pegs for CTX-1300

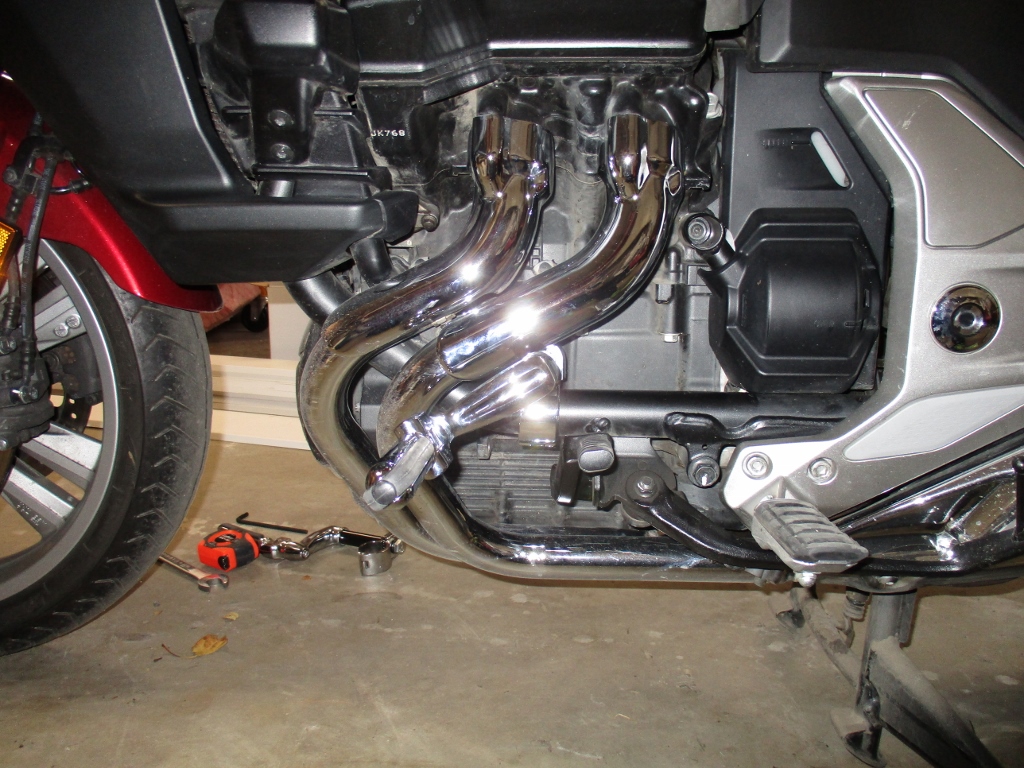

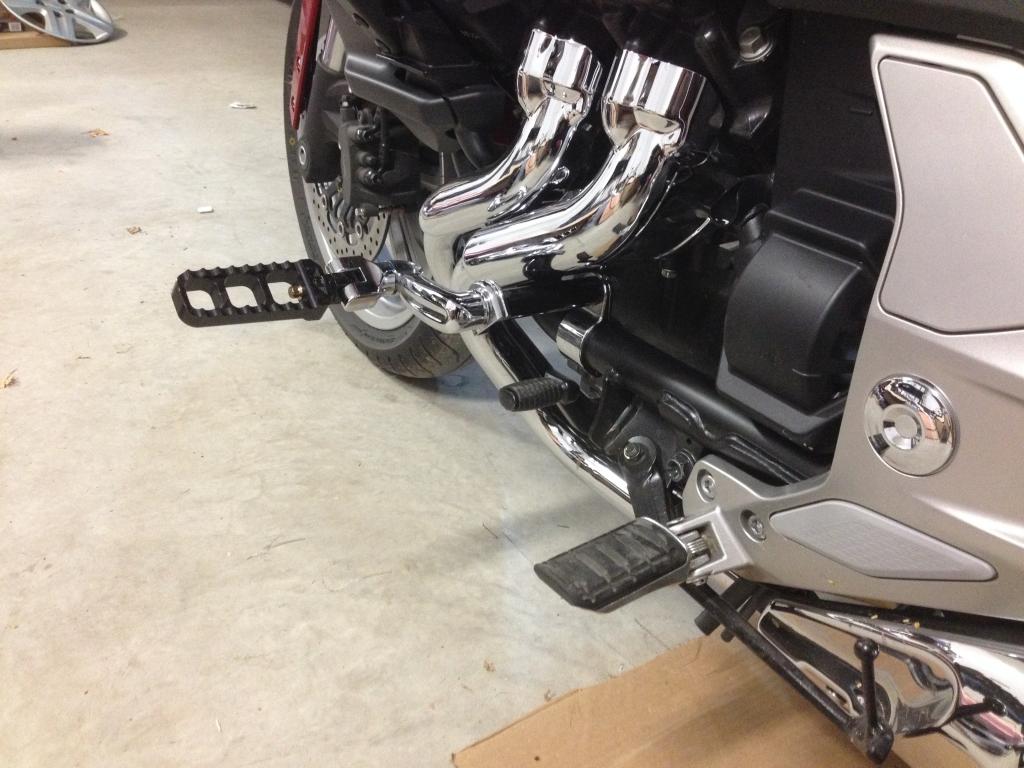

These are the original pictures I started working with from the internet

What to buy:  Our frame diameter is 1.5" on our bikes

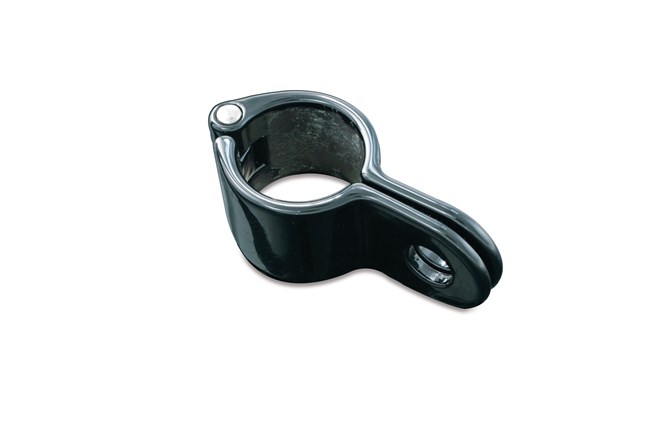

Kuryakyn - 1-1/2" Clamp: Part # 1001

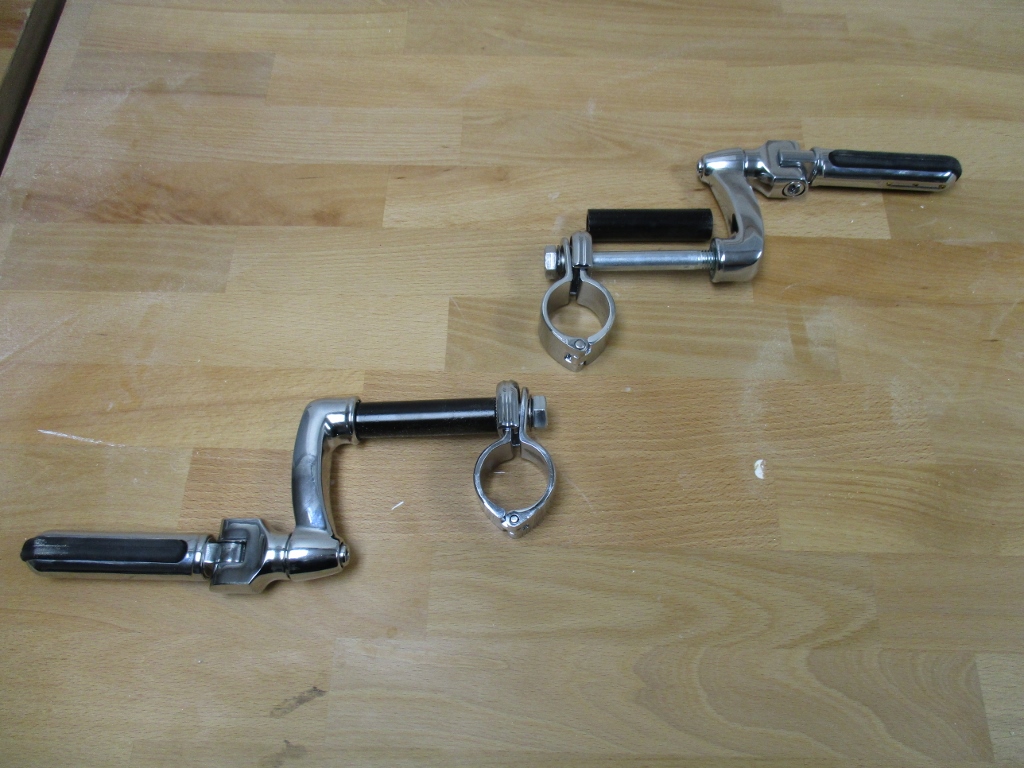

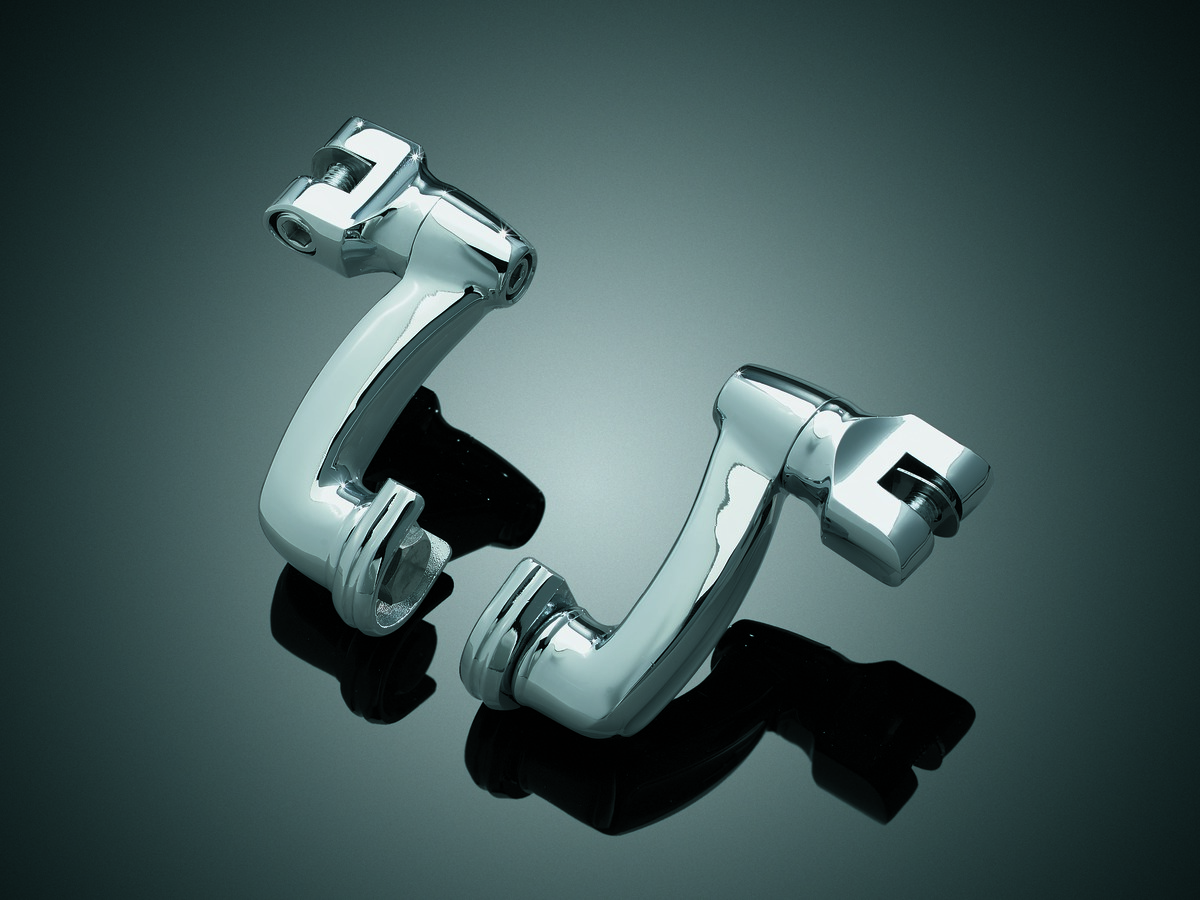

Kuryakyn - Longhorn Offset Pegs: Part # 7996   7996 file

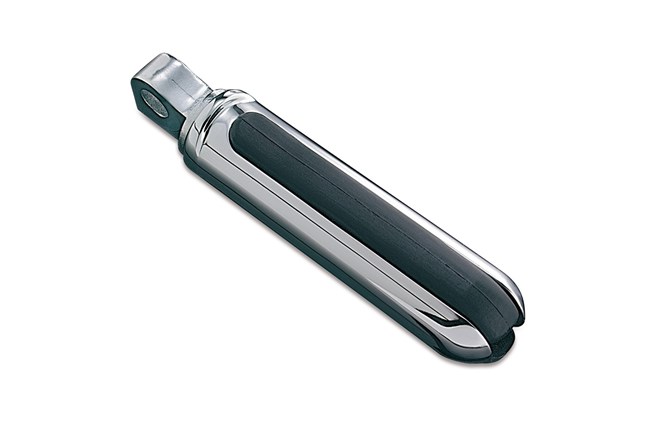

Kuryakan - Mini Pilot Pegs: Part # 4430   4430 file

Two 1/2" x 5" bolts (13 TPI) - Home Depot ~ $3 ea

Make: Two 1/2" x 3-1/4" Sch. 80, Carbon Steel Pipe. The faces / ends need to be square

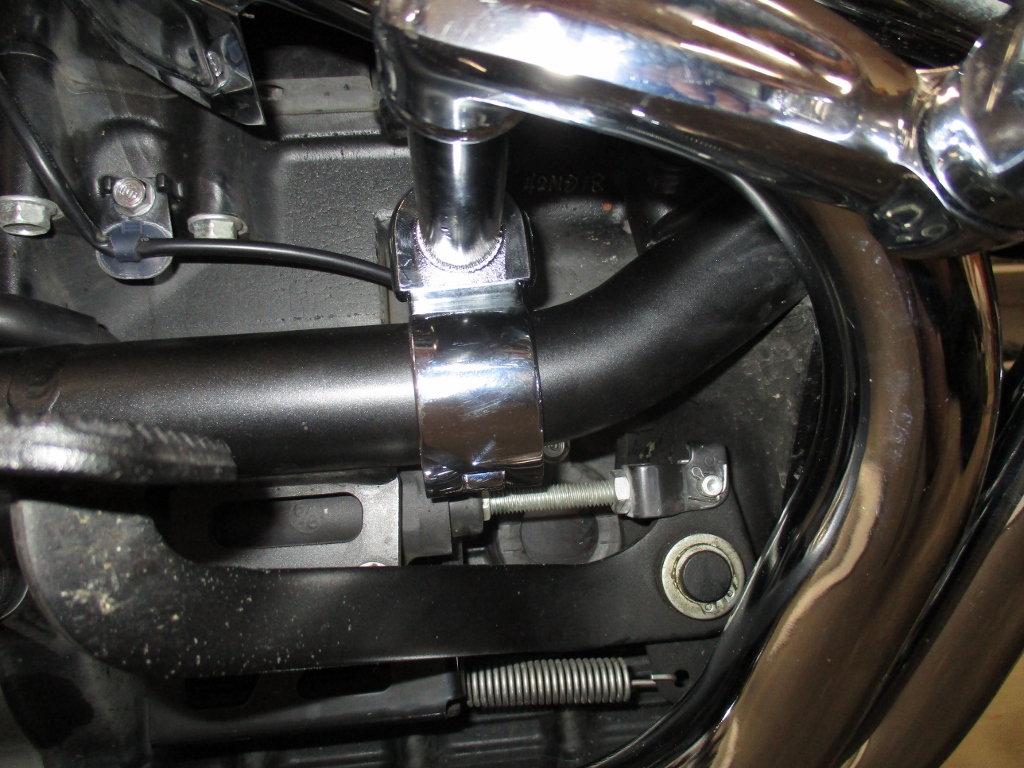

When installing these pegs a 3/4" combination wrench is required. A 30 degree offset would be nice but I had a regular combination wrench. Installing the left side camp is pretty straight forward, I moved the clamp as far forward as possible, this way it assembly does not interfere with the shifter The peg needs to about the same angle as the pipes as there is a mechanical advantage of the offset riding pegs that needs to be "zeroed out"

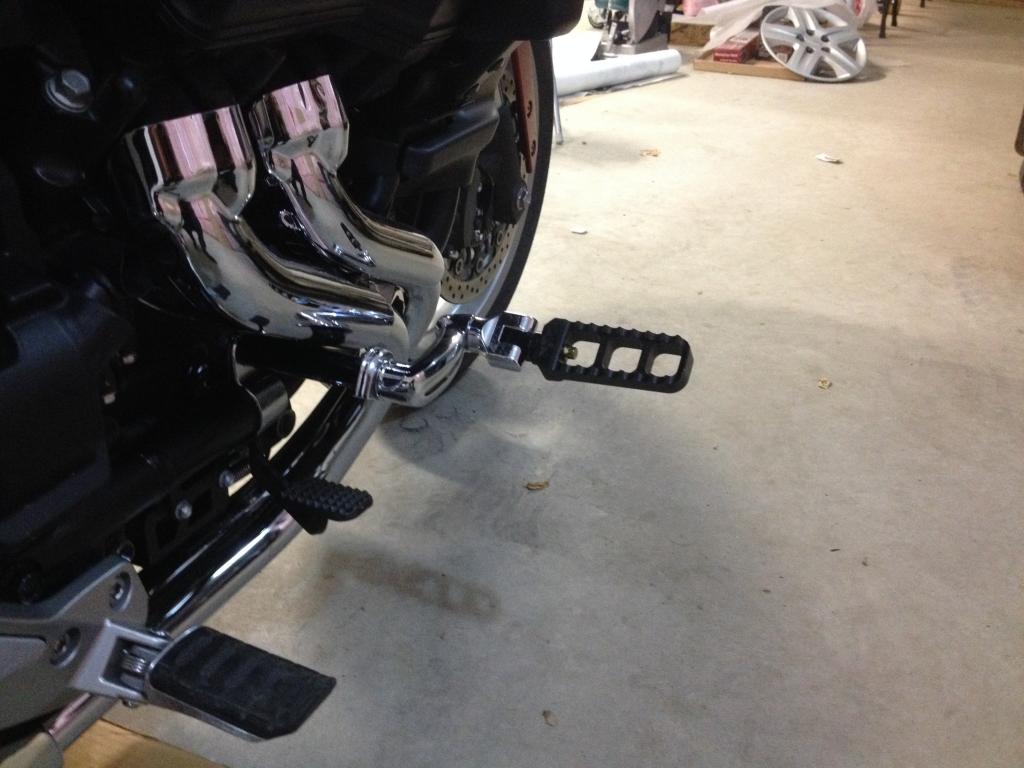

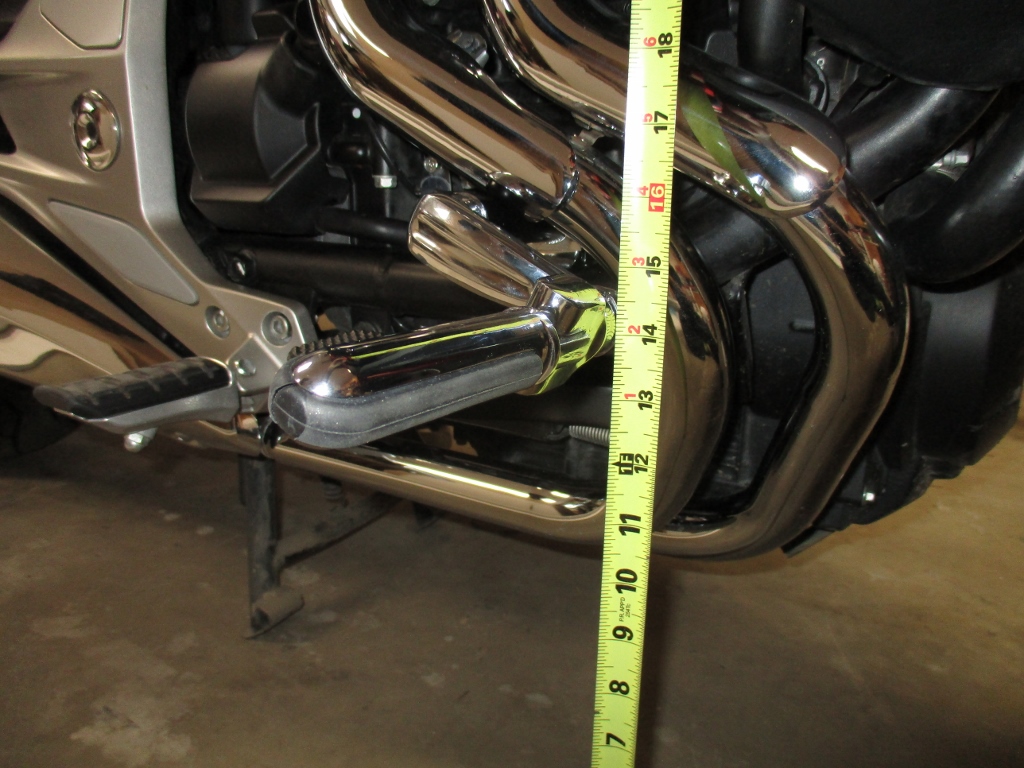

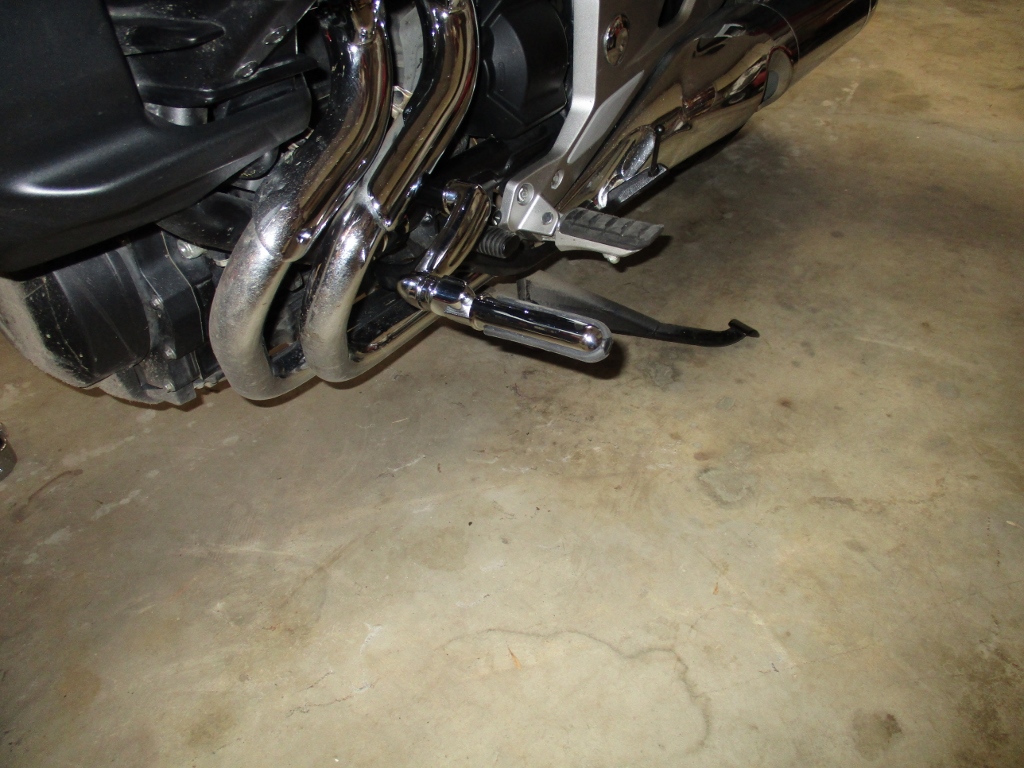

On the right side, the frame clamp should be forced on. The brake line will move enough to allow this. If you disassemble the manual brake linkage it's a pain to re-install!  On the last right side picture you will see I set the pegs at 14" (centerline) from the floor with the bike on the center-stand. Got any questions? email me @ va6gc@outlook.com
